SE11

Time:2020-02-18


SE11
Filter By Gauge (micron): 125,250,375,500,760
Filter By Finish: polished,polished
Filter By Color: Clear

Physical Parameters

OMAY SE11 flame-retardant film is a clear, thin-gauge polycarbonate film with polished surfaces on both sides, and a UL94 V-0 listing to meet the stringent requirements in a wide range of electrical, electronic and transportation applications.

Item

Property

Value

Unit

Test Method

Physical

Density

1.32

g/cm3

ISO 1183

Haze

<0.5

%

ASTM D1003

Light Transmission

89

%

ASTM D1003

Mechanical

Tensile Strength

60

MPa

ISO 527

Elongation

<50

%

ISO 527

Bend Strength

90

MPa

ISO 178

Tensile Modulus

2300

MPa

ISO 178

Surface tension

34

 dyncm

Test fluid

Electrical

Dielectric Constant

3

-

IEC60250

Resistant Puncture Voltage

30

MV/mm

IEC 60243

Surface resistivity

1.00E+16

Ω/square

IEC 60093

Volume resistivity

1.00E+17

Ω-cm

IEC 60093

Thermal

Coefficient of Thermal Expansion

5.8

×10-5/

ISO 11359

Thermal Conductivity Rate

0.2

W/(m*K)

ASTM D5470

Thermal Shrinkage

0.50.7

%

ASTM D1204

Tg

152

ISO306

Flammability

Grade of resistant flame

V-0

           E249605

Tip: This test data is for reference only, not as an absolute application index


Certification

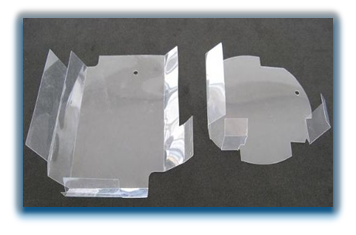

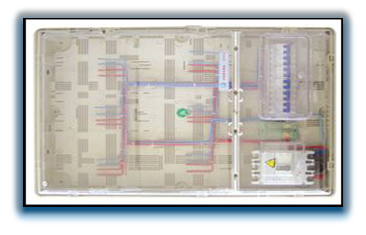

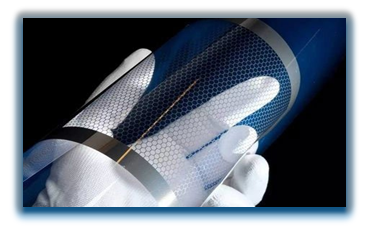

Product Application


Dimensions

OMAY can produce Polycarbonate film and sheet of various size (thickness0.125-4.0mm, width<1220mm) and colour according to customer's requirement.

PC Film

Model

 size of metric system

size of british system

Packing Standard

Thickness
mm

Width×Length
mm×m

Thickness
inch

Width×Length
foot×foot



omay -SE11

0.100

930×500

0.004″

3′×1640′

Roll

1220×500

4′×1640′

0.125

930×400

0.005″

3′×1312′

1220×400

4′×1312′

0.175

930×350

0.007″

3′×1148′

1220×350

4′×1148′

0.250

930×300

0.010″

3′×984′

1220×300

4′×984′

0.375

930×200

0.015″

3′×656′

1220×200

4′×656′

0.430

930×175

0.017″

3′×574′

1220×175

4′×574′

0.500

930×150

0.020″

3′×492′

1220×150

4′×492′

0.760

930×100

0.030″

3′×328′

1220×100

4′×328′

1.000

930×80.00

0.040″

3′×262′

1220×80.00

4′×262′





MSDS
