Time：2019-11-02
Item | Property | Value | Unit | Test Method |
Optical | Light Transmission | 55±3 | % | ASTM D1003 |
Haze | 95±2 | % | ASTM D1003 | |
Physical | Density | 1.2 | g/cm3 | ISO 1183 |
Water Absorbing Capacity | 0.3 | % | ASTM D570 | |
Mechanical | Tensile Strength | 60 | MPa | ISO 527 |
Elongation | >50 | % | ISO 527 | |
Tensile Modulus | 2300 | MPa | ISO 527 | |
Flexural Strength | 85 | MPa | ISO 178 | |
Electrical | Dielectric Constant | 3 | - | IEC60250 |
Resistant Puncture Voltage | 30 | KV/mm | IEC 60243 | |
Arc Resistivity | 250 | - | IEC60112 | |
Surface Resistivity | 1.00E+16 | Ω/square | IEC 60093 | |
Volume Resistivity | 1.00E+17 | Ω-cm | IEC 60093 | |
Thermal | Coefficient of Thermal Expansion | 5.8 | ×10-5/℃ | ISO 11359 |
Thermal Conductivity | 0.2 | W/(m*K) | ASTM D5470 | |
Thermal Shrinkage (at 150℃) | 0.5～0.7 | % | ASTM D1204 | |
Tg | 152 | ℃ | ISO 11357 | |
Flammability | UL94 | V-2 | UL94 | |
Tip: This test data is for reference only, not as an absolute application index.
Surface Texture: Glossy/Satin/Matt/Embossed
Applications:
Railways
Indoor and Outdoor Lighting
Lighting for Clean Rooms

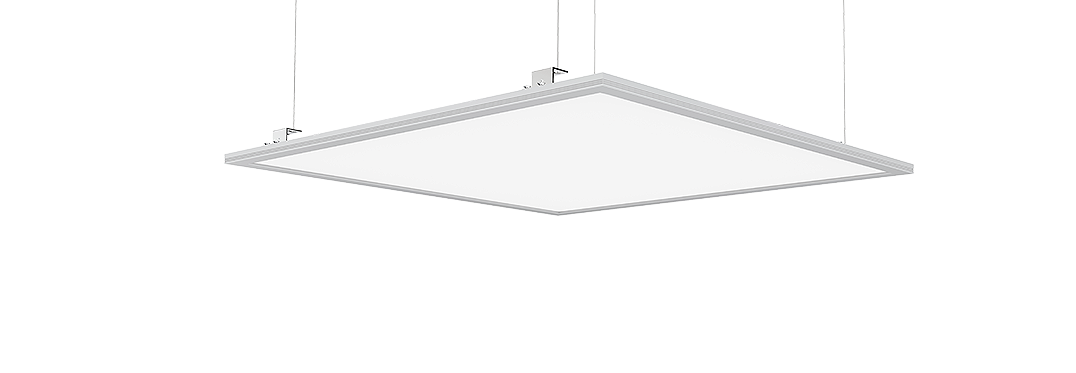

LED Panel light
Office lighting
Down lights
Landscape lighting luminaries
Consumer luminaries
Industrial lighting luminaries
Displays, light box, signage
PC Sheet
Model | size of metric system | size of british system | Packing Standard | ||
Thickness | Width×Length | Thickness inch | Width×Length foot×foot | ||
BLC+ | 0.8 | 1220×2440 | 0.0300’’ | 4′×8′ | Sheet |
1.0 | 1220×2440 | 0.0400’’ | 4′×8′ | ||
1.5 | 1220×2440 | 0.060’’ | 4′×8′ | ||
2.0 | 1220×2440 | 0.0800’’ | 4′×8′ | ||
3.0 | 1220×2440 | 0.1200’’ | 4′×8′ | ||
